BARREL 2019 Science Campaign


payload 7A quicklook info



The first flight of the 2019 science campaign launched from near McMurdo Station, Antarctica at UT 12:33:17 29Dec2019. Links below are mostly to smaller png files; change png to pdf in the plot urls to retrieve higher resolution pdf versions. For the trajectory figure, colors are suppressed until 17Mar2020, then change at the start of each UT day. UPDATE: processor reset when batteries ran low on 09Apr2020, due to shorter days. Data acquired after that reset are not shown.

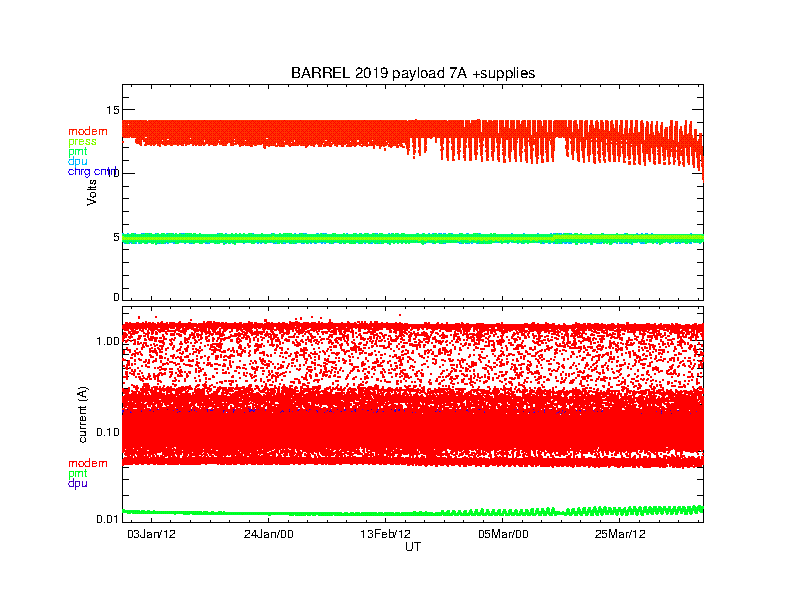

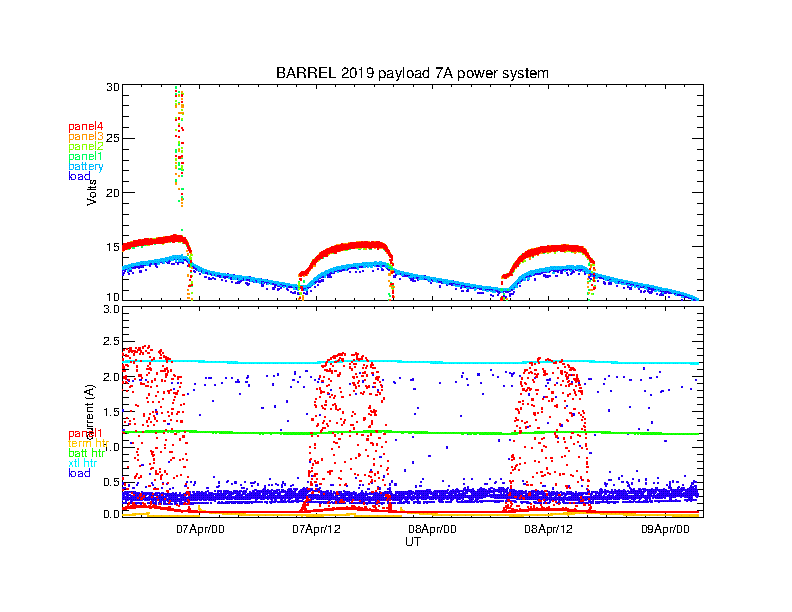

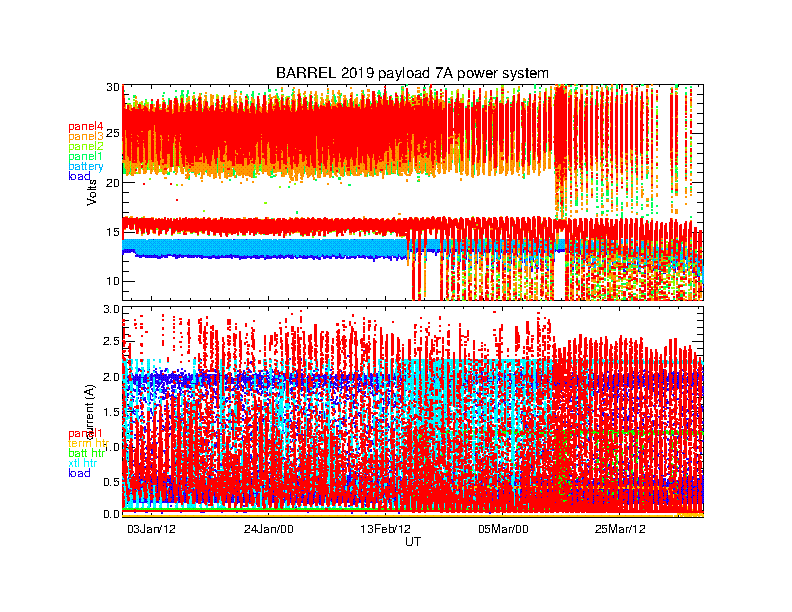

Currents for the 3 heaters should be used only to distinguish between on/off states.

balloon track

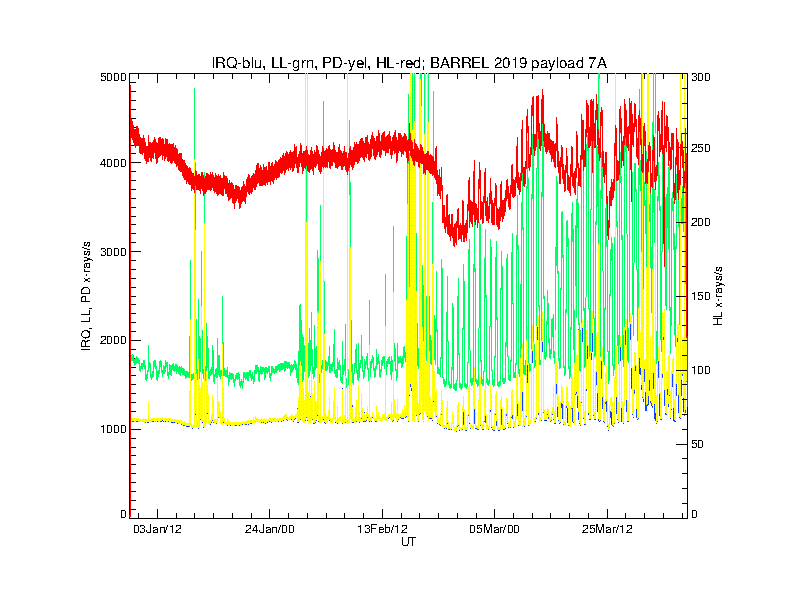

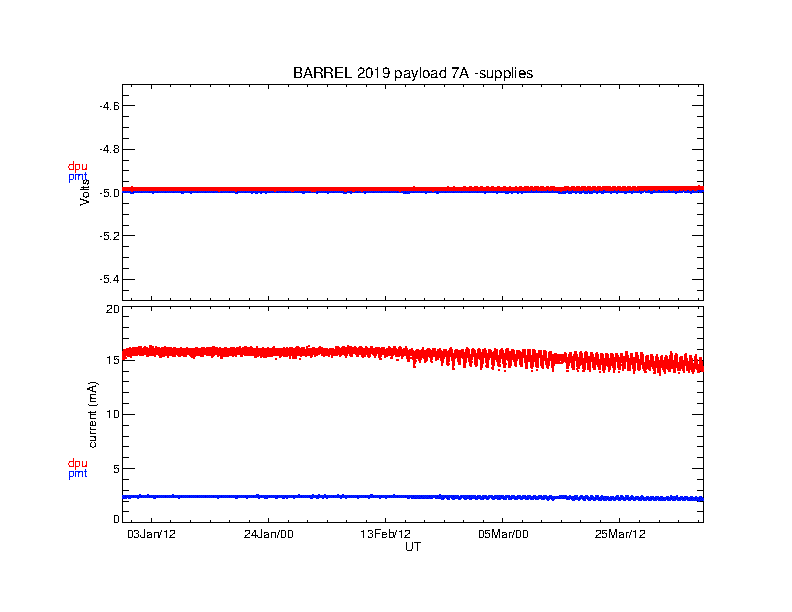

quick-look plots from 2019 McMurdo flight

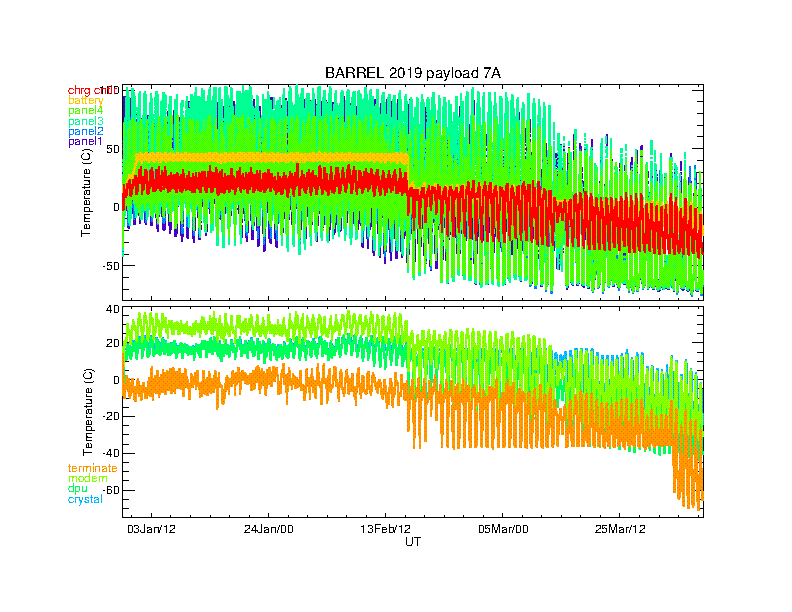

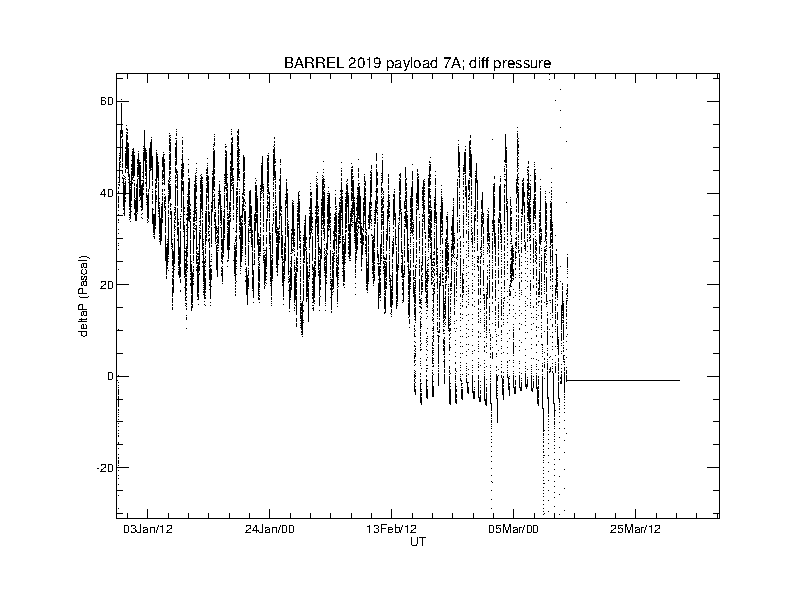

Below are text files of position, differential pressure, and solar panel temperature values, in the format (date, time, latitude, longitude, altitude, pressure, panel1, panel2, panel3, panel4), with pressure value in Pascals, temperatures in Celsius, and altitude in km, at one minute cadence. The fill value for position data is -999. Pressure values after UT 00:04 14Mar2020 are not valid.

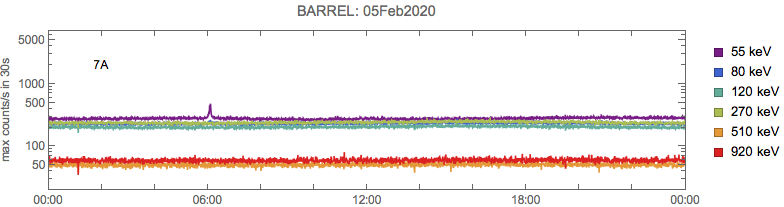

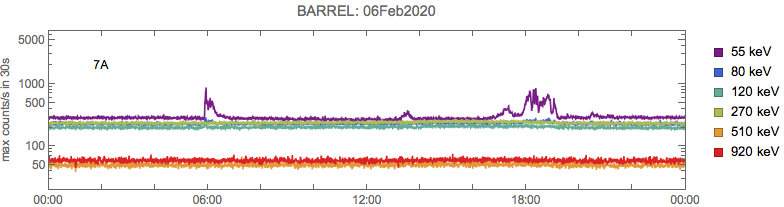

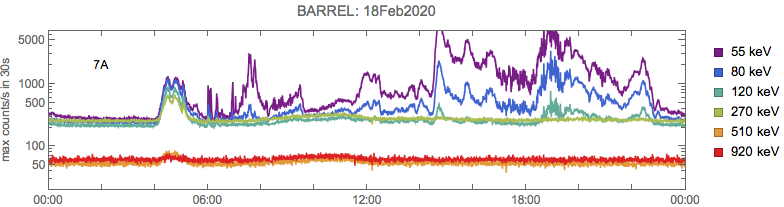

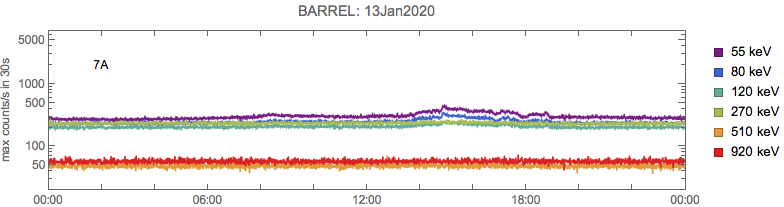

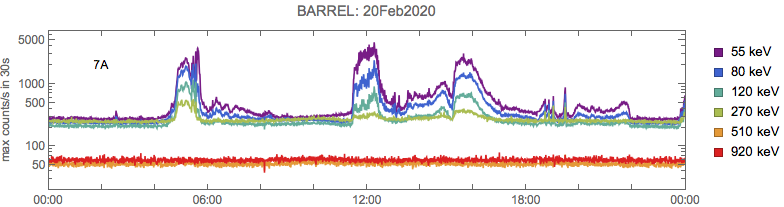

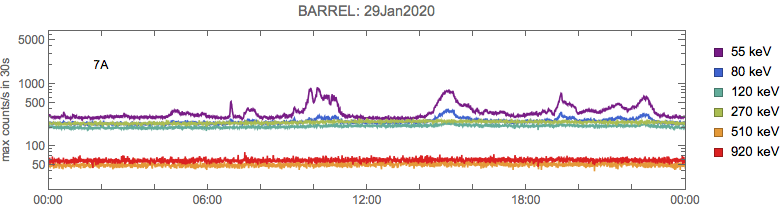

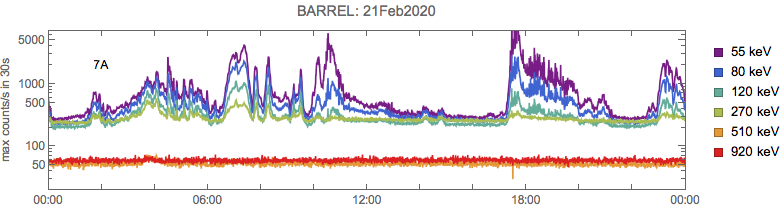

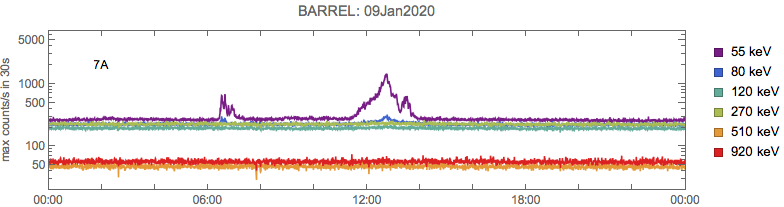

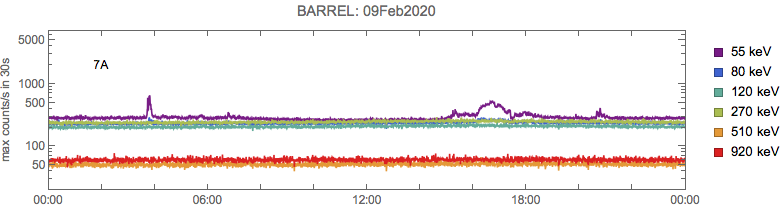

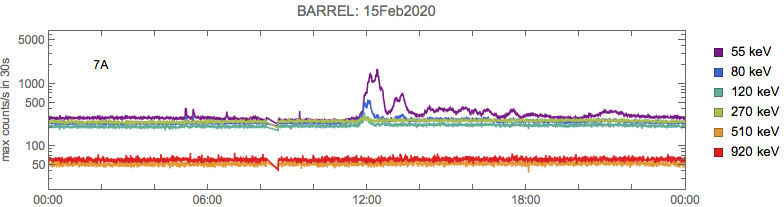

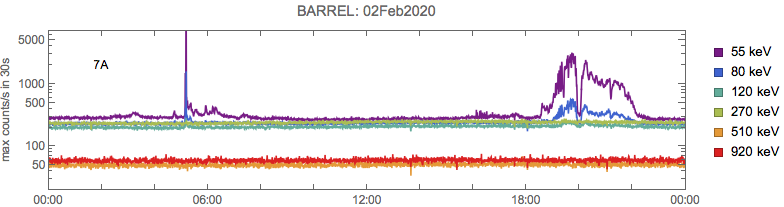

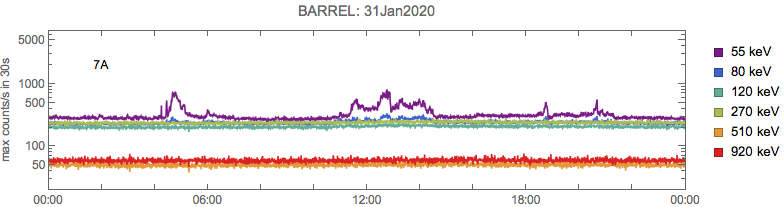

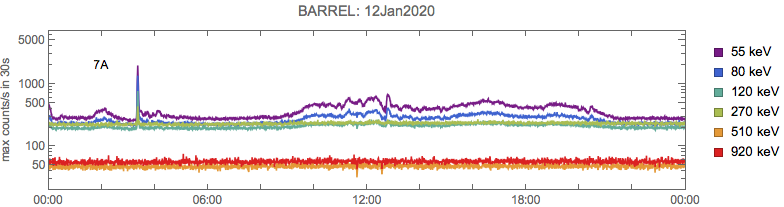

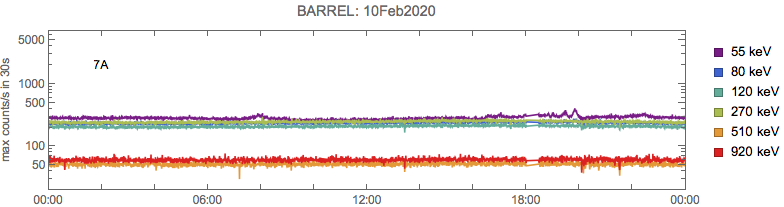

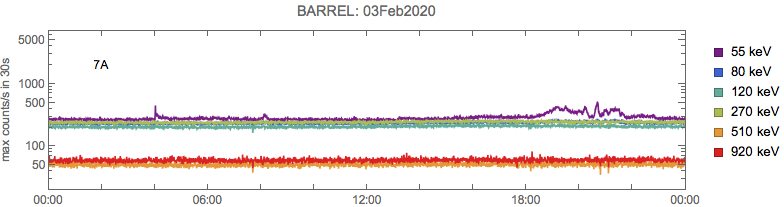

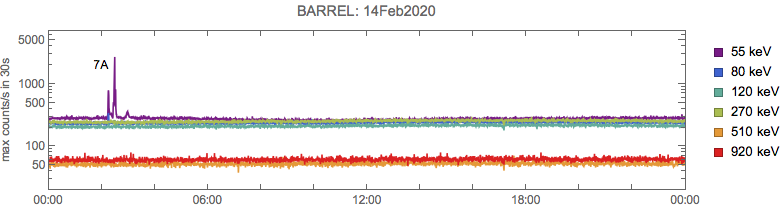

24-hr fast spectra are produced after end of UT day

26Feb2020 25Feb2020 22Feb2020 21Feb2020 20Feb2020 19Feb2020 18Feb2020 17Feb2020 15Feb2020 14Feb2020 12Feb2020 11Feb2020 10Feb2020 09Feb2020 08Feb2020 07Feb2020 06Feb2020 05Feb2020 04Feb2020 03Feb2020 02Feb2020 01Feb2020 31Jan2020 30Jan2020 29Jan2020 15Jan2020 14Jan2020 13Jan2020 12Jan2020 11Jan2020 10Jan2020 09Jan2020 01Jan2020

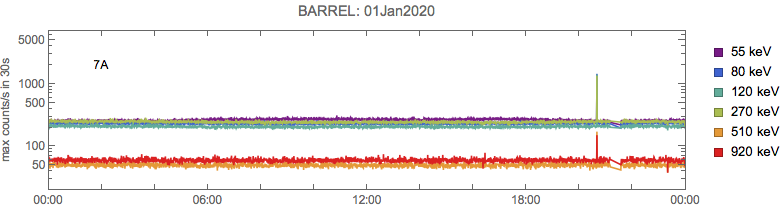

Something unusual around UT 20:39:38 01Jan2020, seems too slow for a GRB. 01Jan2020
