M eV A uroral X -ray I maging and S pectroscopy 1999/2000 Long Duration Balloon Flight Around the South Pole |
Data
Position Data |
|
|

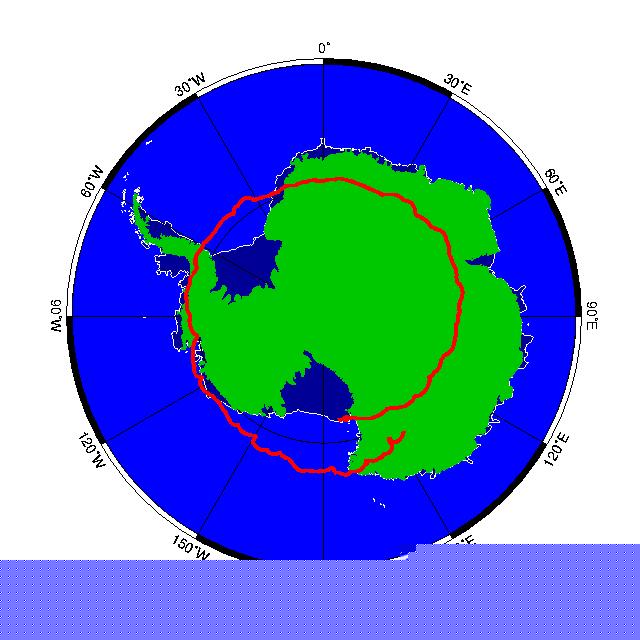

| Position track with respect to magnetic (CGM) and geographic coordinates (as of January 22, 2000) | Final trajectory of MAXIS balloon (January 12-30, 2000). | |
|
Preliminary, quick look data These data are provided as key-parameter data to summarize the observations made by the MAXIS auroral x-ray instruments. Please contact the MAXIS PI (Dr. Robert Lin) for further data inquiries. |
||
Count rates |
|
The plot to the left summarizes the GeD, PXRI, and CXRI count rates for the entire flight between January 12-30, 2000. Note two large auroral x-ray events on January 19-20, 2000 and January 22-26, 2000. Count rates for these events are shown below. |
|
|
|
| Count rates for the January 19-20, 2000 auroral x-ray event. | Count rates for the between January 22-24, 2000. This event, extending through January 26, 2000 may have been associated with a period of disturbed solar wind conditions that may have included a CME interaction with the magnetosphere. | |
|
Count rates for the January 24-26, 2000 period. | |
GeD spectra (10-min. accumulation) |
|
|
BGO spectrum (5-min. accumulation) |
 |
|
Housekeeping |
 Temperatures |
PXRI tube data CXRI tube data |
raw data |
23Jan00 rates 24Jan00 rates |
File format is a list of big-endian {(int32) frame_counter, (int16) low cntr,
(int16) high cntr}. To convert frame counter to UT seconds (starting 1Jan70), use seconds=0.24998440718760273(frame_cntr) + 947647303.3471189 |
